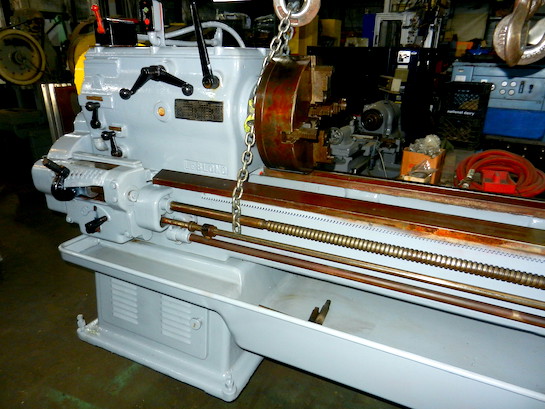

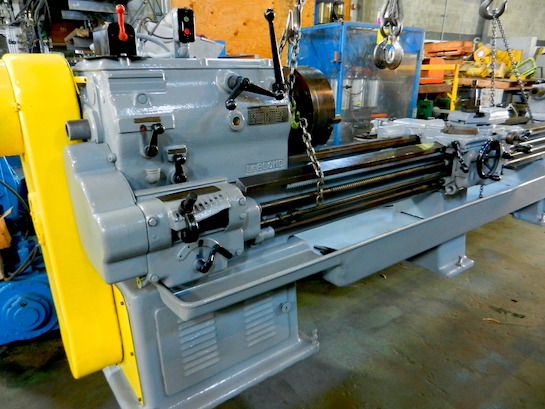

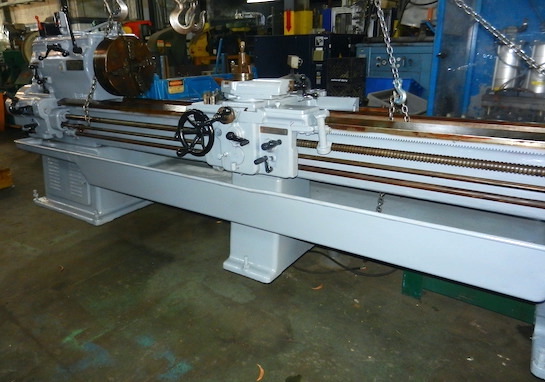

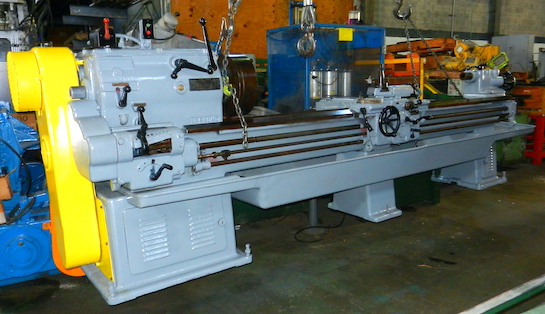

LeBLOND 18" x 100" LATHE
USED "LEBLOND" HEAVY DUTY GEAR HEAD ENGINE LATHE
CAPACITY 18" x 100"
SWING OVER THE BED 19-1/4"
SWING OVER THE CARRIAGE 12-1/2"
DISTANCE BETWEEN CENTERS 100"
2" SPINDLE HOLE
TAILSTOCK: TAPER MORSE #4
TAILSTOCK DIAMETER 3"
QUILL TRAVEL 10"
SPINDLE SPEEDS (8) 15 - 525 R.P.M.
MOTOR 10 HP/440/3/60
DIMENSIONS 210" x 48" x 60"
WEIGHT 6,500 LBS. (APPROX.)
EQUIPPED WITH:
4-JAW CHUCK 16",
TAPER ATTACHMENT,
THREADING DIAL & CHIP PAN
 |  |  |  |  |  |
