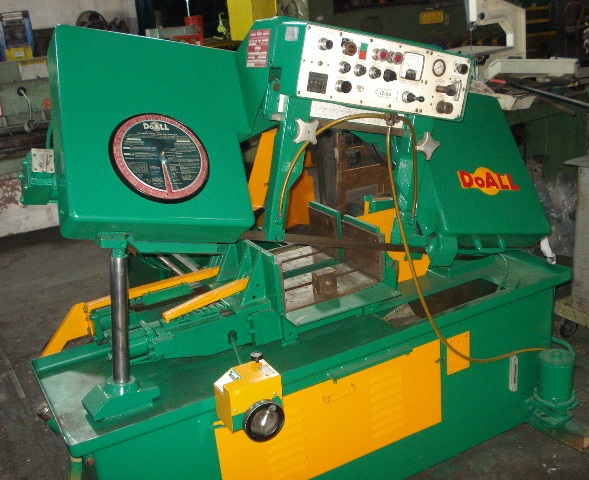

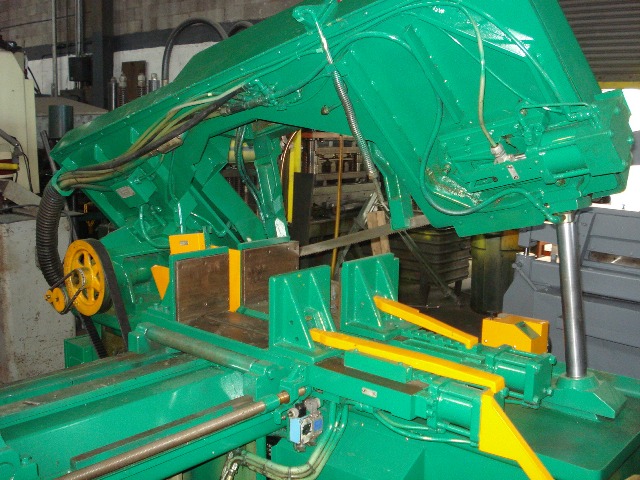

DO-ALL 12" x 16" AUTO. HORIZONTAL BANDSAW C-1216-A
USED "DO-ALL" AUTOMATIC METAL CUTTING HORIZONTAL BANDSAW
HYDRAULICALLY OPERATED
MODEL C-1216-A
SERIAL# 373-81685
CAPACITY 12" x 16" RECTANGLE
-------------------15" ROUND
BLADE SIZE 162" x 0.035 x 1-1/4"
BLADE SPEED 85 - 450 S.F.P.M. (VARIABLE)
WHEEL DIAMETERS 16"
MATERIAL INDEX: SHUTTLE VISE
MAIN MOTOR 5 HP/440/3/60
COOLANT MOTOR 1/3 HP
HYDRAULIC MOTOR 2 HP
COOLANT CAPACITY 15 GALLONS
HYDRAULIC CAPACITY 15 GALLONS
WITH HYDRAULIC VISE & COOLANT PUMP

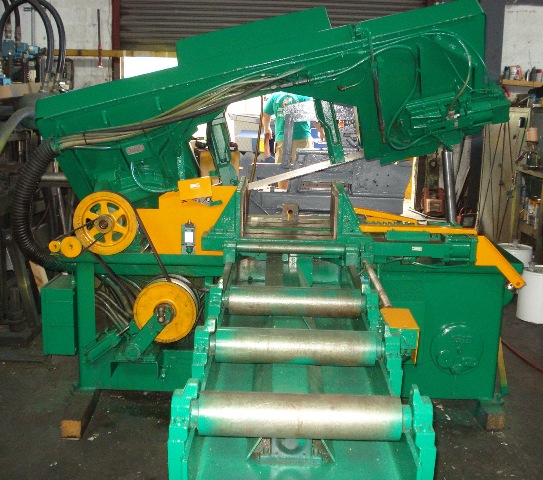

ENTRY & EXIT TABLES
WEIGHT 4,750 LBS. (APPROX.)
 |  |  |  |
