CINCINNATI # 2 HORIZONTAL/VERTICAL MILLING MACHINE

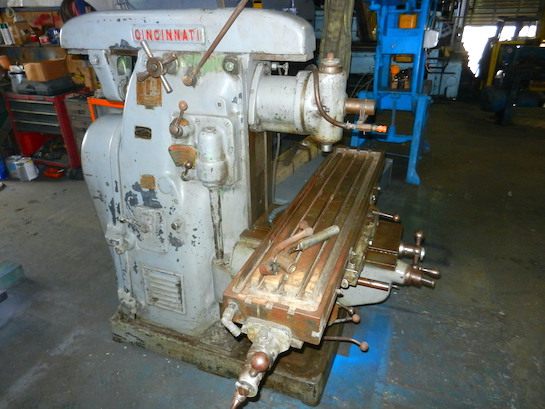

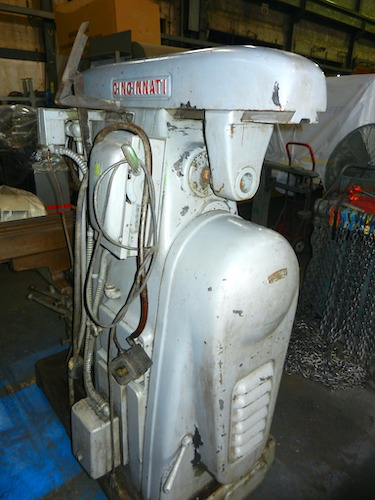

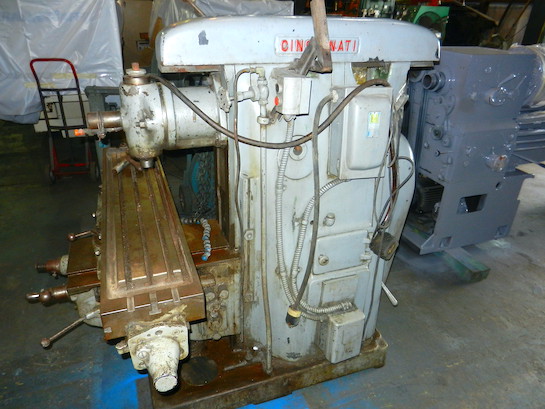

USED "CINCINNATI" HORIZONTAL/VERTICAL MILLING MACHINE
MODEL# MH2
SERIAL #5A2P1D-36
TABLE SIZE 10-5/8" x 52-3/4"
MOVEMENTS:
LONGITUDINAL 28"
TRANSVERSAL 10"
VERTICAL 16"
SPINDLE TAPER #50
SPEEDS (15) FROM 23 TO 1,200 R.P.M.
AUTOMATIC FEEDS 3/4" TO 30 IPM
MAIN MOTOR 5 HP /220-440/3/60
EQUIPPED WITH: UNIVERSAL VERTICAL MILLING HEAD
MOTOR 1 HP/220-440/3/60
SPEEDS (9) 100 TO 1,030 R.P.M.
DIMENSIONS †x †x â€
WEIGHT 4,750 LBS. (APPROX)
 |  |  |  |  |  |
