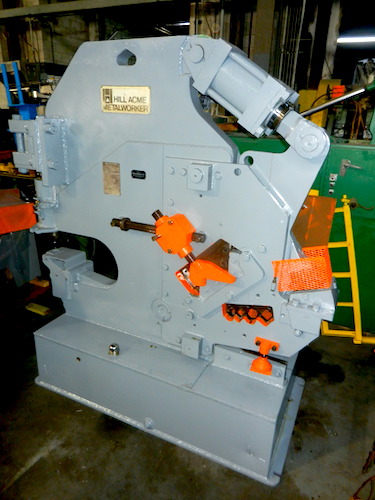

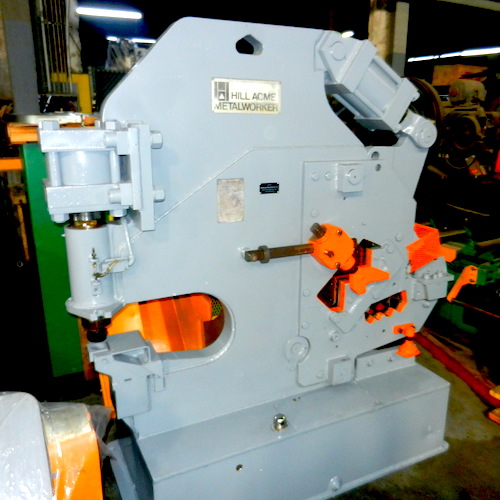

HILL ACME 95 TON HYDRAULIC IRONWORKER
USED "HILL ACME" HYDRAULICALLY OPERATED IRONWORKER
MODEL 6
SERIAL # 7806-740-02
CAPACITY 95 TONS
OIL CAPACITY 45 GALLONS
STROKE 1-1/2"
STROKES PER MINUTE 15 TO 40
THROAT DEPTH 24"
CAPACITY (MILD STEEL):

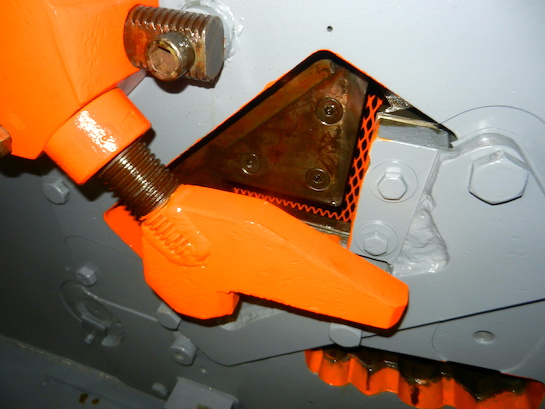

ANGLE CUTTING 6" x 6" x 1/2" @ 90°
---------------------5" x 5" x 1/2" @ 45º

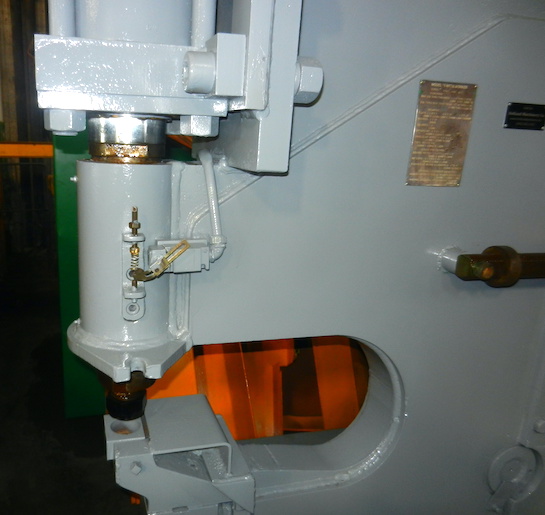

PUNCHING 1-3/16" THRU 7/8"
--------------1-1/16" THRU 1"

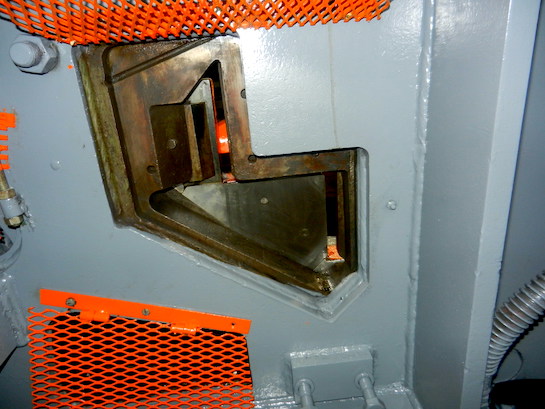

COPING 3-1/2" x 3-1/2" x 1/2"

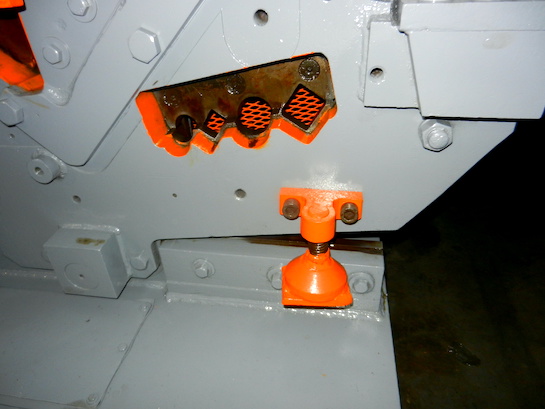

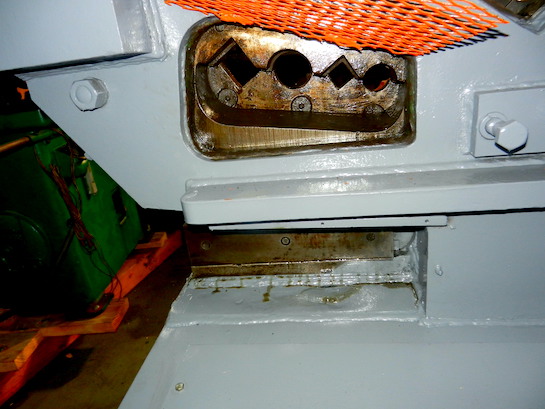

ROUND BARS 2-3/16"
SQUARE BARS 2"
FLAT PLATE 14" x 1/2"
----------------10" x 3/4"
MOTOR 15 HP /220-440V/3PH
WEIGHT 10,500 LBS. (APPROX)
 |  |  |  |  |  |  |  |  |
