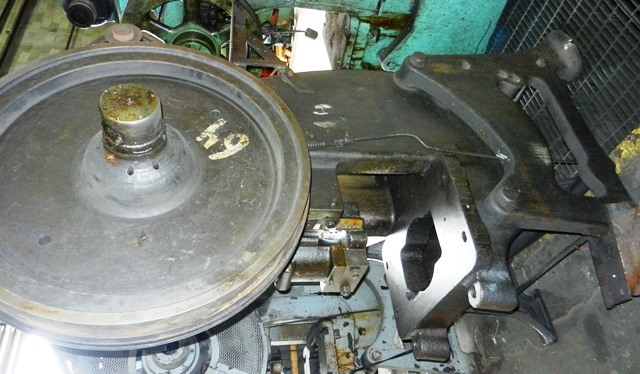

L & J 50 TON MECHANICAL PUNCH PRESS O.B.I.
USED "L & J" PUNCH PRESS O.B.I. MECHANICALLY OPERATED
MODEL #5
CAPACITY 50 TONS
STROKE 4"
ADJUSTMENT OF THE SLIDE 3"
SHUT HEIGHT (ADJUSTMENT UP, STROKE DOWN) 10-1/4"
TABLE SIZE 18-1/2" x 30"
HOLE THRU THE TABLE 9" x 14"
DEPTH OF THROAT 10"
OPENING THRU THE FRAME 13-1/2"
MOTOR HP/220-440/3/60
EQUIPPED WITH:
FLYWHEEL GUARD
 |  |  |
