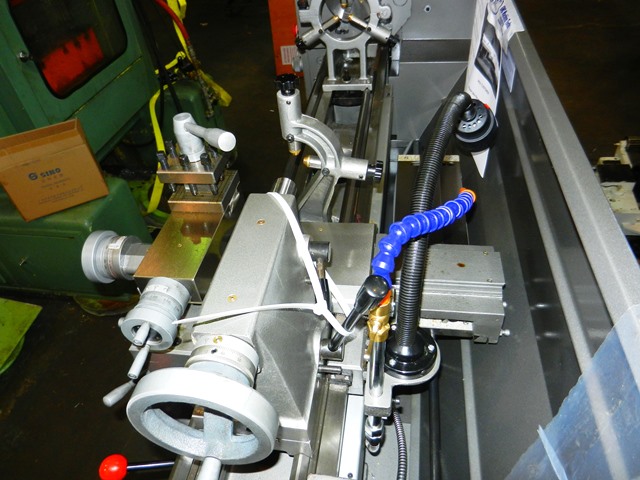

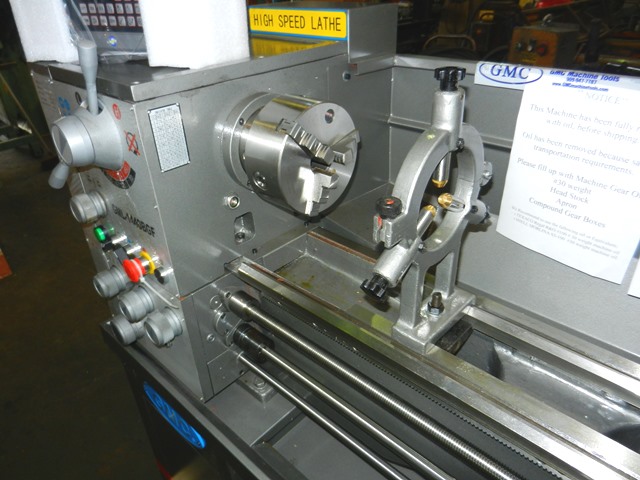

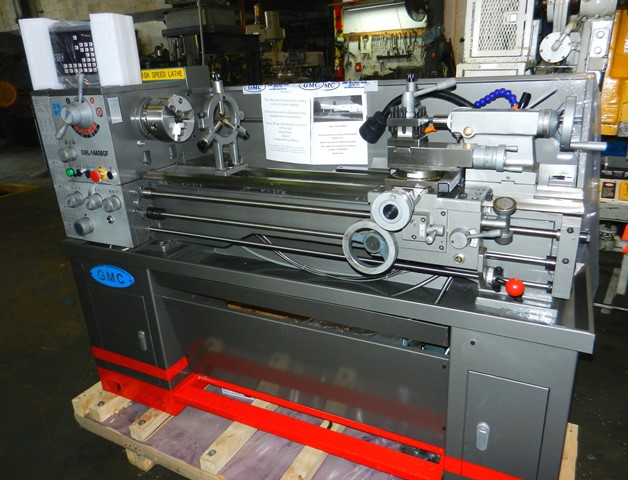

GMC 14" x 40" LATHE
NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GML-1440BGF
SERIAL # 220030096 / AGE OF MANUF 03/2020
SWING OVER THE BED 14"
SWING OVER CARRIAGE 8-1/4"
SWING OVER THE GAP 19-1/4"
LENGTH OF THE GAP 6-1/2"
DISTANCE BETWEEN CENTERS 40"
SPINDLE HOLE 1-1/2"
SPEEDS (8) FROM 70 - 2,000 R.P.M.
INCH / METRIC / DIAMETRAL / MODULAR
D1-4 CAMLOCK SPINDLE
METRIC THREADING (44) 0.1mm - 7mm
INCHES (56) 4 TO 56 T.P.I.
LONGITUDINAL FEED RANGE 0.002" – 0.03"
TAILSTOCK TAPER #3 MT
TAILSTOCK QUILL DIAMETER 1-1/2"
TAILSTOCK BARREL TRAVEL 4"
MOTOR 3 HP/220/1/60
WEIGHT: 1,750 lbs. / DIMENSIONS 70" x 35" x 59"
EQUIPPED WITH:
NEW 2 AXIS D.R.O.
TAPER ATTACHMENT
3 & 4 JAW CHUCK
STEADY REST
FOLLOW REST
FACE PLATE
FOOT BRAKE
CARRIAGE STOP
COOLANT SYSTEM
4 WAY SQUARE TOOL POST
THREADING DIAL,
CENTER, CHIP PAN,FULL LENGTH SPLASH GUARD
 |  |  |  |  |  |  |  |  |
