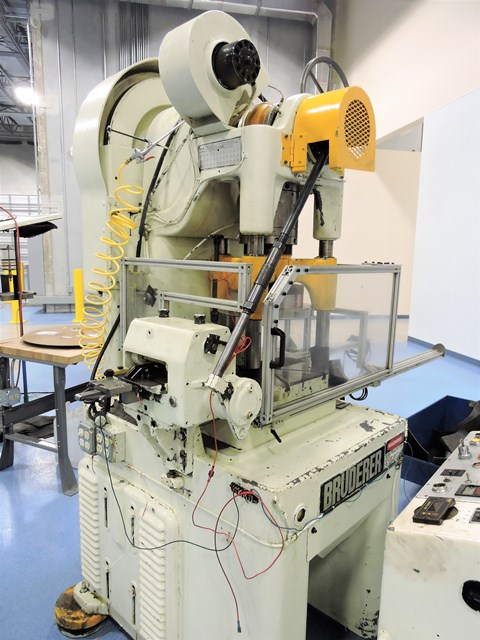

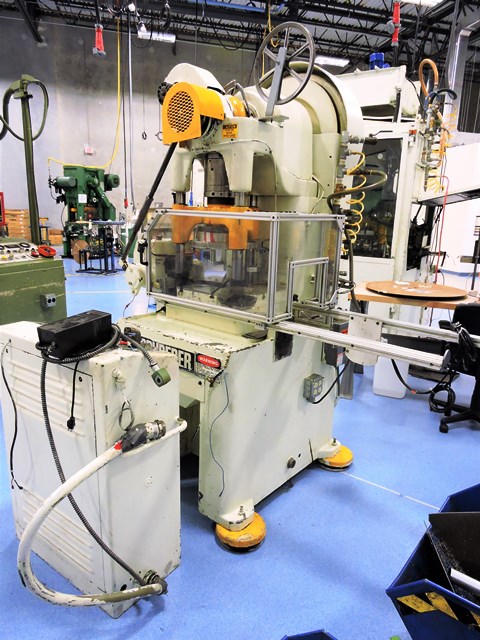

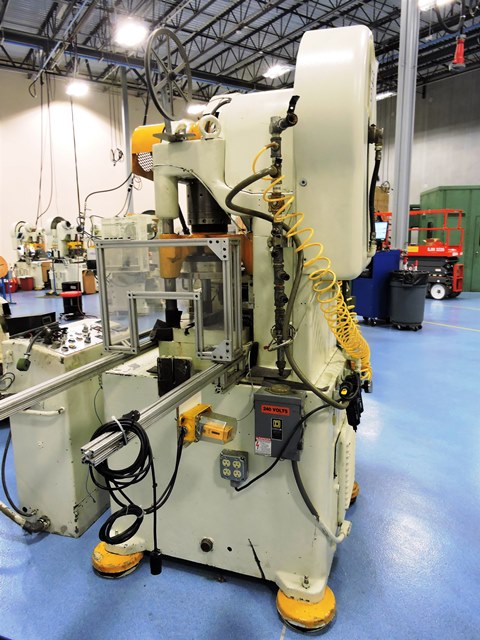

BRUDERER 30 TON PUNCH PRESS HS
USED "BRUDERER" PRECISION HIGH SPEED POWER PUNCH PRESS
MODEL BSTA-30
30 METRIC TONS
ADJUSTABLE STROKE 5/8" to 1-9/16" (16mm – 40mm)
MAX. SHUT HEIGHT 9.25"

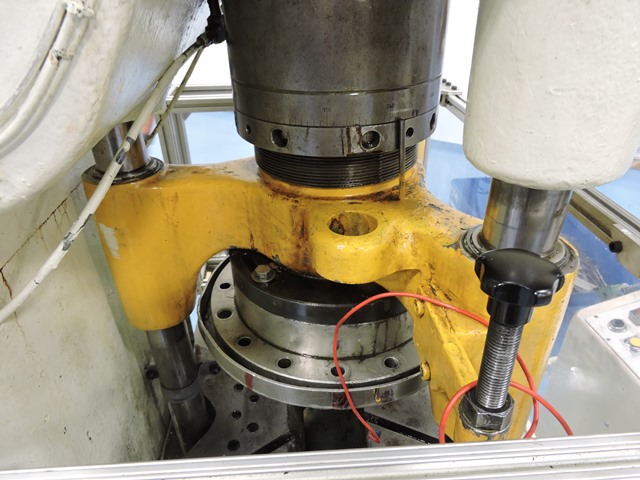

RAM ADJUSTMENT 1-5/8"
RAM AREA 12" DIAMETER
DISTANCE BETWEEN POST 12" x 13"
OPENING THRU FRAME 12"
BED AREA 21-1/2" x 12"
HOLE THRU BED 12-1/2" x 4"
SPEED (VARIABLE) 100 to 600 S.P.M.
AIR CLUTCH & BOLSTER PLATE 2-3/8"
MOTOR 6 HP/230-460/3PH/60
WEIGHT 7,000 LBS. (APPROX.)
DIMENSIONS 42" x 52" x 86"
EQUIPPED WITH: AUTOMATIC FEEDER
CENTRAL LUBRICATION

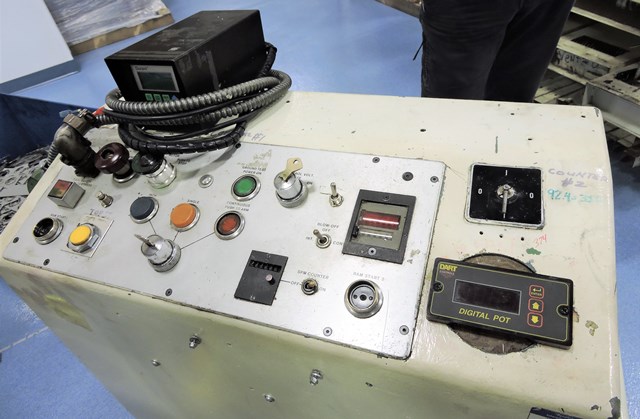

ELECTRIC CONTROLS
 |  |  |  |  |  |
