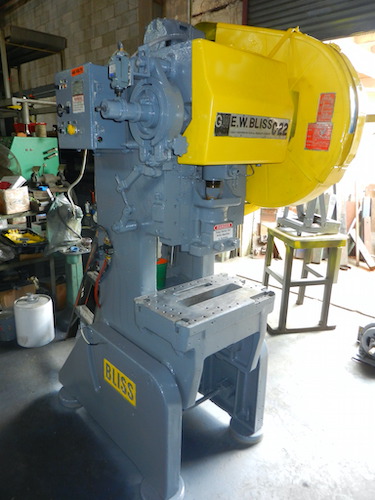

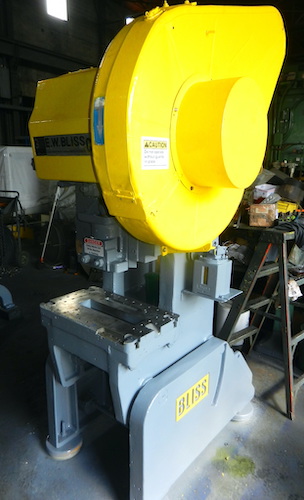

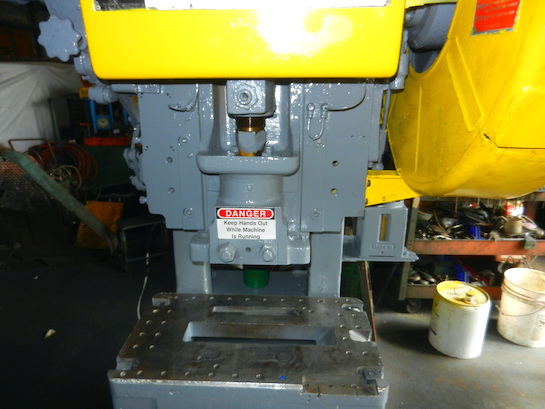

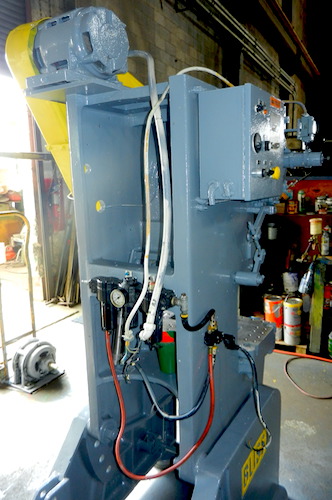

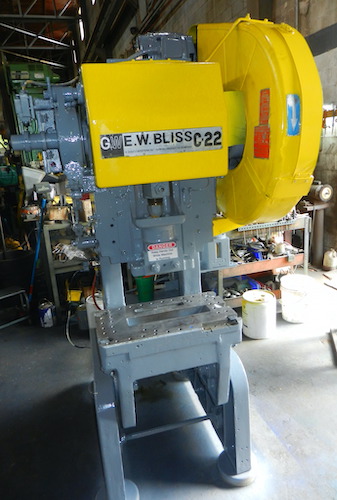

BLISS 22 TON MECHANICAL PUNCH PRESS
USED "BLISS" OBI BACK MECHANICAL POWER PUNCH PRESS
MODEL C-22
22 TON CAPACITY
STROKE 2.5"
SHUT HEIGHT 9.25"
RAM ADJUSTMENT 2.5"
THROAT 7.5"
OPENING THRU FRAME 12"
BED AREA 23.5" x 14"
HOLE THRU BED 12" x 9"
HOLE THRU BED 10" DIAMETER
SPEED 150 S.P.M.
AIR ACTUATED CLUTCH & BOLSTER PLATE 1.75"
MOTOR 2 HP/230-460/3PH/60 (WIRED 480)
WEIGHT 3,750 LBS. (APPROX.)
DIMENSIONS 58" x 48" x 86"
 |  |  |  |  |
